Kitchen design and 3D plans in Montréal, drawn in AutoCAD

A measured plan of your room, an elevation of every run, and a 3D view where it settles an argument. Approved on paper before a single sheet is cut.

What you get

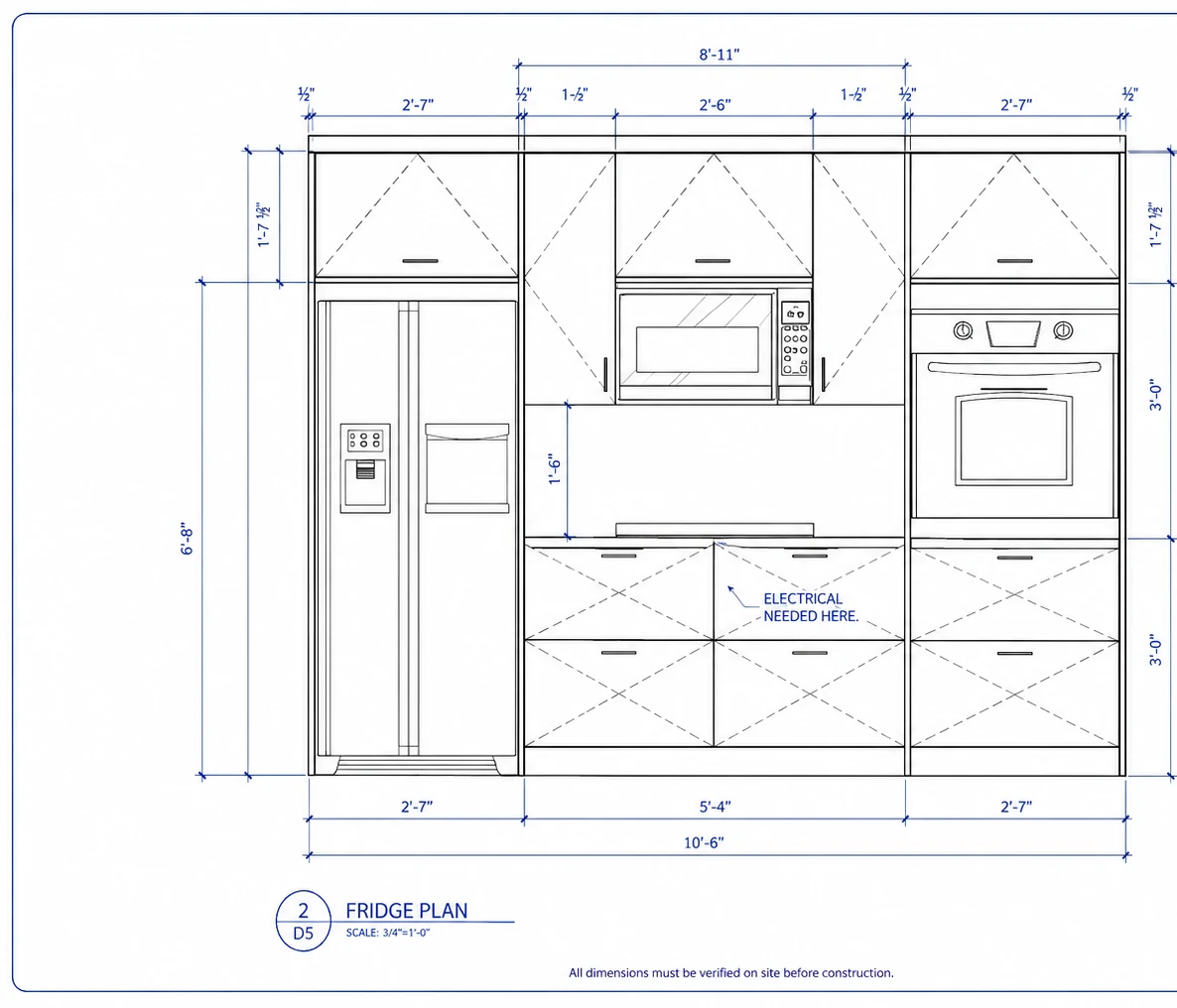

AutoCAD elevation of the refrigerator wall for a Pointe-Claire custom kitchen, with dimensions for the fridge panel, microwave, wall oven and drawer banks — The fridge wall in Pointe-Claire, drawn before anything was cut. Ten feet six inches of cabinetry, with every opening dimensioned to the appliance that goes in it.

AutoCAD perspective drawing of the one wall kitchen with island for the Bois-Franc project, with dimensions — A perspective of the same drawing set. It answers the question people actually have at that stage, which is not a dimension but whether the room will feel open.

The service

Decided on paper, not on site

Every expensive mistake in a kitchen is a decision that was made on installation day. A drawer that cannot open because the fridge door swings across it. A wall oven at a height that only suits one person in the house. A run that stops four inches short of a bulkhead nobody measured. Drawings exist to move all of those decisions to a point where changing them costs nothing.

Ours are made in AutoCAD, not in a catalogue configurator. A measured plan of the room comes first, with the plumbing, the gas, the electrical and the window reveals on it. Then an elevation of every run, at scale, with the real appliance openings taken from the specification sheets rather than the showroom label. Then a 3D view where the layout is unusual or where two options need to be compared. You read them, you mark them up, and the written price is fixed against the version you approve.

The drawings also decide things people do not expect. Where the seam in the countertop will fall. Whether an island of that length can carry seating on the end and still leave a walkway. Whether a farmhouse sink forces the base cabinet below it to be built differently, which it does, and which is far cheaper to know before the cabinetry is cut. This is the cheapest hour in the whole project.

What the drawing set contains

A measured plan of the room with services and clearances marked.
An elevation of every run, dimensioned, with cabinet codes.
Appliance openings taken from the manufacturer specifications.
A 3D view or a perspective where it helps the decision.
The hardware and finish schedule: hinges, runners, pulls, lighting, stone.

What a 3D view is for, and what it is not

A 3D view is there to settle proportion: how tall the uppers read, whether the island crowds the walkway, how the run looks with the fridge panelled instead of exposed. It is not a colour proof. Screens flatter finishes, and a rendered gloss white is never the gloss white that arrives on a door. So we use the view for the shape of the room and physical samples for everything else, which is why the showroom on Boulevard Thimens has doors and stone on the floor rather than a screen on the wall.

What the design stage includesLimakdéco · drawn in AutoCAD

Site measure: Free, on site, every wall, reveal and service recorded
Plan: A measured plan of the room, with clearances
Elevations: One per run, at scale, fully dimensioned
3D views: Where the layout is unusual or two options are being compared
Software: AutoCAD, not a catalogue configurator
Appliances: Openings from the manufacturer sheets, verified on site later
Schedule: Hinges, runners, pulls, lighting, stone and finishes listed
Revisions: Marked up and reissued until you approve a version
Price: Written and itemised against the approved drawings
Countertop: Seam and sink positions planned at this stage
Lighting: Light rail, in cabinet and under cabinet positions decided
Permits: We tell you which parts of the work need one
Turnaround: Usually within the week of the measure
Format: Printed at the meeting, and PDF by email
Then: Fabrication and installation by the same company
Area: Montréal, Laval, the West Island and the South Shore

What gets decided on paper

Layout optionsWall removal feasibilityIsland size and seatingWalkway clearancesCabinets to the ceilingBulkhead solutionsAppliance placementPanelled fridge runsWall oven heightsDrawer versus doorPantry and tall unitsCountertop seamsSink type and positionBacksplash heightHardware scheduleLighting positionsFinish combinations

Have a room and no idea what it can take?
Book the measure. You will get a plan, elevations and a written price for the layout we recommend, and usually a second option beside it so there is something to compare.
